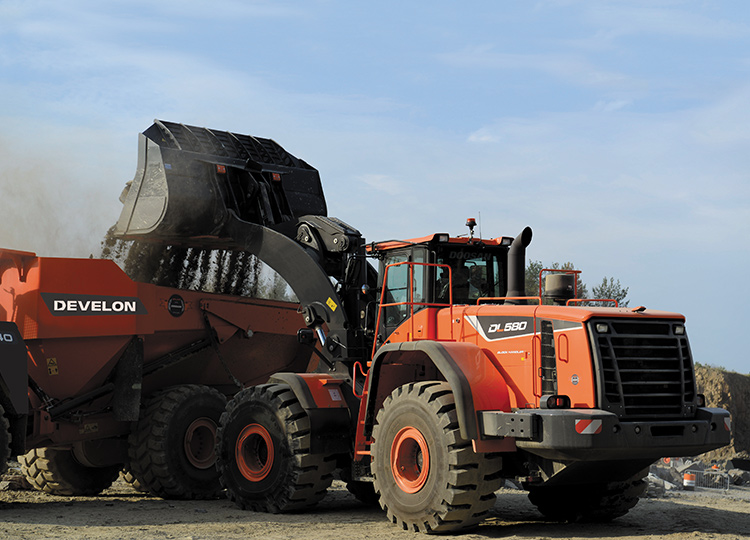

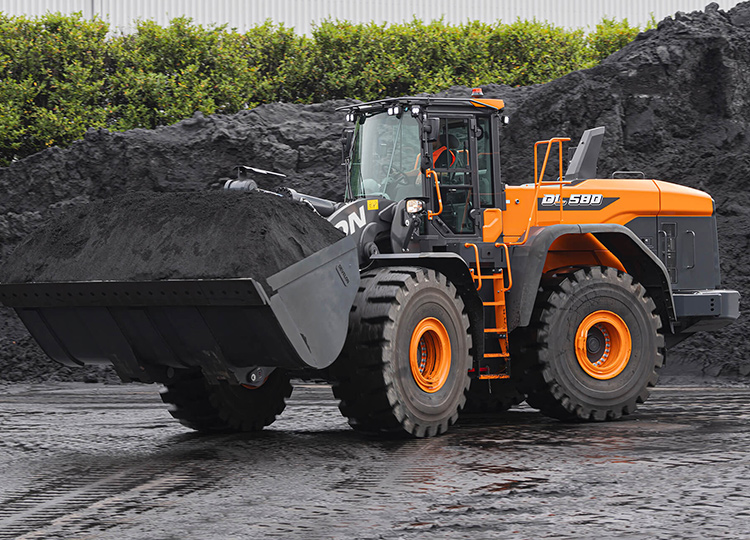

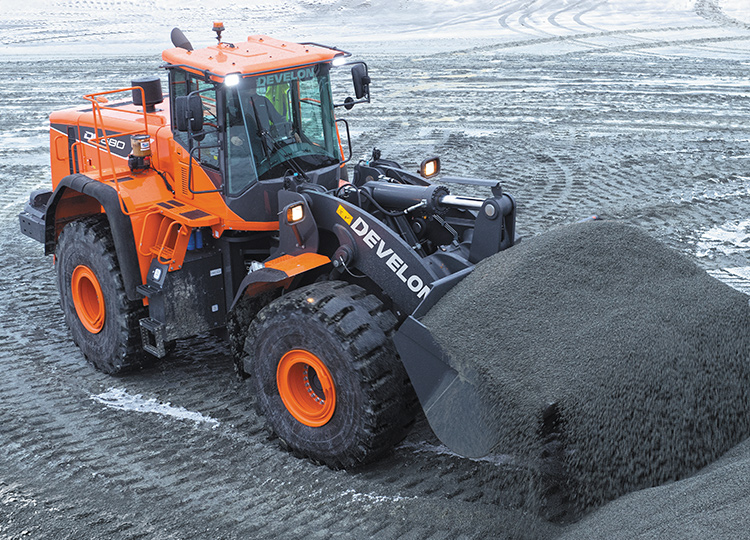

DEVELON DL580 wheel loader (formerly known as Doosan) is a heavy-duty, high-capacity wheel loader engineered for the harshest environments, including granite and sand quarries, large-scale construction sites, and crushed stone or ore handling.
Featuring a reinforced Z-bar linkage and increased lifting capacity, the DL580 can fully load a 24-ton dump truck in just two passes, significantly accelerating onsite logistics.
Specs & Dimensions
| Arm | Std. | ||
| Bucket | m³ | 6.0 | |
| Weight | t | 34.13 | |
| Static tipping load (straight) | t | 27.46 | |
| Static tipping load (full turn) | t | 24.25 | |
| Breakout force | t | 29.06 | |
| Tire | 29.5-R25 (L4) | ||
| А | Bucket width | mm | 3405 |
| B | Dump height (at fully raised) | mm | 3140 |
| C | Dump reach (at fully raised) | mm | 1515 |
| D | Digging depth | mm | 100 |
| E | Height at bucket pivot point | mm | 4780 |
| F | External radius at bucket edge | mm | 7620 |
| G | External radius at tire | mm | 6794 |
| H | Chassis base | mm | 3700 |
| I | Tire width | mm | 3400 |
| K | Ground clearance | mm | 359 |
| L | Overall length | mm | 10050 |
| M | Overall height | mm | 3845 |
Develon DL580
Wheel loader
Get a Commercial Offer
Country of Manufacture:
South Korea
Standard Equipment:
Engine Model:
Scania DC13
Power:
400 hp
Transmission:
Powershift
Bucket:
6.0 m³
Operating Weight
34.13 т
Undercarriage:
Wheels:
29.5-R25 (L4)
Max Forward Travel Speed:
40 km/h
Max Reverse Travel Speed:
27.2 km/h
Performance Specifications:
Discharge Height (45°) at Full Elevation:
3.14 m
Dimensions:
Transport Length:
10.05 m
Transport Width (Bucket):
3.40 m
